材質：不銹鋼、雙相鋼、碳鋼、鈦、鎳等
性能規(guī)范 Specifications
|
公稱壓力：PN1.6,2.5,4.0,6.4MPa 強度試驗壓力：PT2.4,3.8,6.0,9.6MPa 低壓氣密封試驗壓力：0.6MPa 適用介質：Q41F-（16-64)C 水、油品、氣 適用溫度：-29~150°C 適用介質：Q41F-(16-64)P 硝酸類 Q41F-(16-64)R 醋酸類 適用溫度：-29°C~150°C |
Nominal pressure:PN1.6,2.5,4.0,6.4MPa Strength testing pressure:PT2.4,3.8,6.0,9.6MPa Seat testing pressure(low pressure):0.6MPa Applicsble media:Q41F-(16-64)C Water.Oil. Gas Applicsble temperature:-29~150°C Applicsble media:Q41F-(16-64)P Nitric acid Q41F-(16-64)R Acetic acid Applicsble temperature:-29°C~150°C |

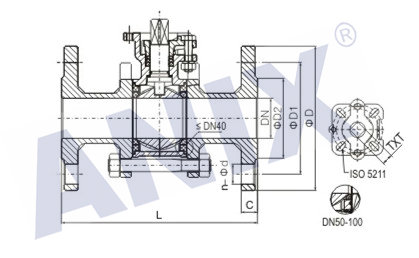

產(chǎn)品結構圖
